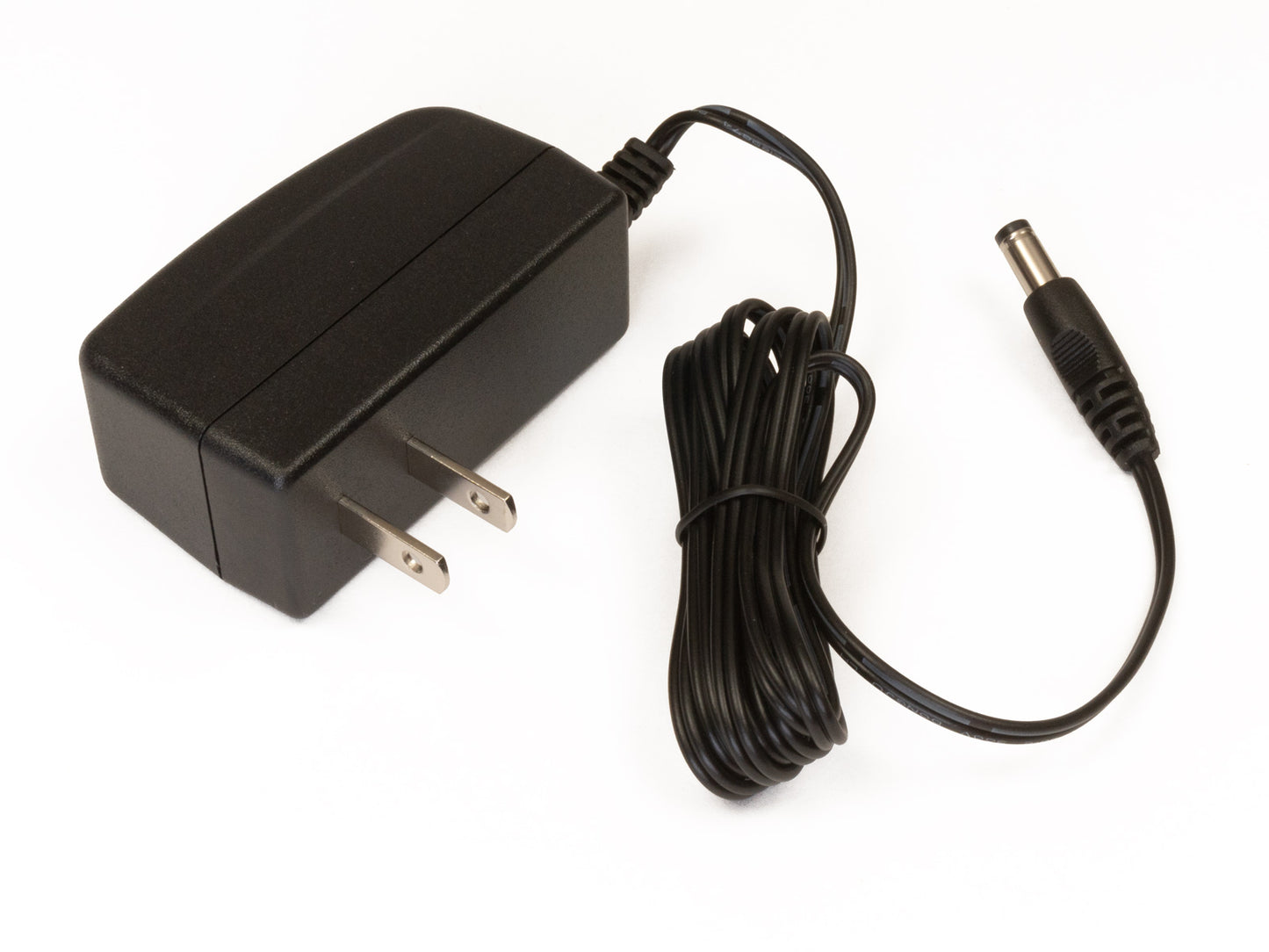

Power Adapter - 9VDC

This 'wall-wart' style adapter outputs 9 Volts DC (regulated) and can supply a maximum of 1300mA.

The output has a 2.1mm tip with center-positive polarity. The symbol for a center-positive tip looks like this:

Input: 100-240 Volts AC at 50/60 Hz. Input Plug style: North American 2-prong.

Dimensions of plastic housing: 2.73" x 1.58" x 1.14"

Length of output cable: 58"

This power adapter can be used with the following instruments we've made:

• Bolsa Bass (pink or white enclosures)
• ETC Video Synth
• EYESY Video Synth
• Original Kaleidoloop: yellow, blue, teal enclosures with wood bottoms.
• Original Pocket Pianos: Standard & MIDI, green or 'silver' anodized enclosures with wood bottoms.
• Organelle: blue anodized, 'M', 'S', and 'S2' models.
• Septavox (yellow or black enclosures)
• Video Scopes: original, B&W, and Rhythm models.
